Goal

Observe the charging curve of a capacitor.

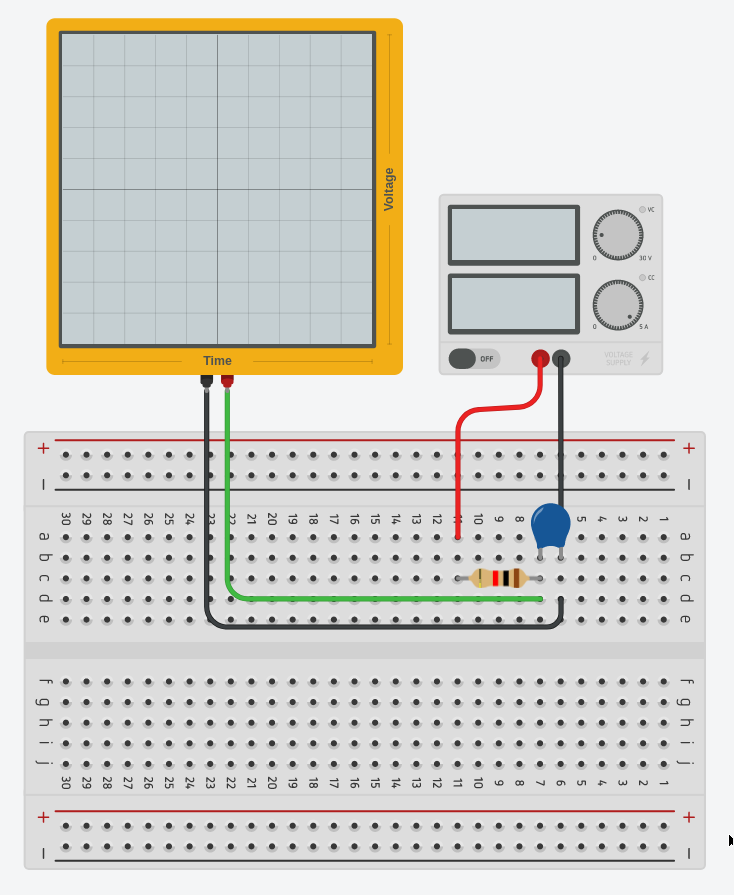

Circuit

circuit_capacitor

Points to think about

  1. How long did it take for the capacitor to charge?
  2. You're only interested in measuring the charging of the capacitor. Is there a way to only measure this on the oscilloscope?
  3. An oscilloscope only measures voltage. How would you measure current? (hint: V=IR)
